Examples
Material
Here is a step-by-step example of how to implement a material entity using the OData Framework.
This is an example implementation of a material entity.
Prerequisites
- First you need to create a SEGW project.
- Implement the Framework classes
Create the entity class
Example class name: ZCL_ODATA_MATERIAL.
This class should inherit from ZCL_ODATA_MAIN.
CLASS zcl_odata_material DEFINITION
PUBLIC
INHERITING FROM zcl_odata_main
CREATE PUBLIC.
PUBLIC SECTION.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_odata_material IMPLEMENTATION.
ENDCLASS.
GET_ENTITYSET
Redefine
Redefine the method GET_ENTITYSET for the material class.
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entityset REDEFINITION.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entityset.
ENDMETHOD.
Fill the method
Add some logic to the entityset method.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entityset.
DATA lt_materials TYPE mara_tab.
SELECT * FROM mara
INTO TABLE lt_materials.
copy_data_to_ref( EXPORTING i_data = lt_materials
CHANGING c_data = er_entityset ).
ENDMETHOD.
GET_ENTITY
The same for the GET_ENTITY method.
Redefine
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entity REDEFINITION.
Fill the method
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entity.
DATA ls_material TYPE mara.
io_tech_request_context->get_converted_keys( IMPORTING es_key_values = ls_material ).
SELECT SINGLE * FROM mara INTO ls_material WHERE matnr = ls_material-matnr.
copy_data_to_ref( EXPORTING i_data = ls_material
CHANGING c_data = er_entity ).
ENDMETHOD.
zcl_odata_material
CLASS zcl_odata_material DEFINITION
PUBLIC
INHERITING FROM zcl_odata_main
CREATE PUBLIC.
PUBLIC SECTION.
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entityset REDEFINITION.
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entity REDEFINITION.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_odata_material IMPLEMENTATION.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entityset.
DATA lt_materials TYPE mara_tab.
SELECT * FROM mara
INTO TABLE lt_materials.
copy_data_to_ref( EXPORTING i_data = lt_materials
CHANGING c_data = er_entityset ).
ENDMETHOD.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entity.
DATA ls_material TYPE mara.
io_tech_request_context->get_converted_keys( IMPORTING es_key_values = ls_material ).
SELECT SINGLE * FROM mara INTO ls_material WHERE matnr = ls_material-matnr.
copy_data_to_ref( EXPORTING i_data = ls_material
CHANGING c_data = er_entity ).
ENDMETHOD.
ENDCLASS.
Update the DPC_EXT class
The DPC_EXT class should be updated to call the methods of the material class. You can find the boilerplate code in the DPC boilerplate code section of the documentation. This would be the full dpc_ext class:
CLASS zcl_blubb_dpc_ext DEFINITION
PUBLIC
INHERITING FROM zcl_blubb_dpc
CREATE PUBLIC.
PUBLIC SECTION.
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entityset REDEFINITION.
METHODS /iwbep/if_mgw_appl_srv_runtime~get_entity REDEFINITION.
METHODS constructor
RAISING /iwbep/cx_mgw_busi_exception.
PROTECTED SECTION.
PRIVATE SECTION.
DATA mt_data_providers TYPE REF TO zcl_odata_data_provider.
ENDCLASS.
CLASS zcl_blubb_dpc_ext IMPLEMENTATION.
METHOD constructor.
super->constructor( ).
TRY.
mt_data_providers = NEW #( me ).
NEW zcl_odata_fw_controller( 'Namespace' )->define_dpc( mt_data_providers ).
CATCH zcx_odata INTO DATA(lo_error).
NEW zcl_odata_error_handler( me )->raise_exception_object( lo_error ).
ENDTRY.
ENDMETHOD.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entityset.
DATA(ls_data_provider) = mt_data_providers->get( iv_entity_name ).
ls_data_provider-instance->before_processing( ).
ls_data_provider-instance->set_context( mo_context ). " for SADL features
ls_data_provider-instance->/iwbep/if_mgw_appl_srv_runtime~get_entityset(
EXPORTING iv_entity_name = iv_entity_name
iv_entity_set_name = iv_entity_set_name
iv_source_name = iv_source_name
it_filter_select_options = it_filter_select_options
it_order = it_order
is_paging = is_paging
it_navigation_path = it_navigation_path
it_key_tab = it_key_tab
iv_filter_string = iv_filter_string
iv_search_string = iv_search_string
io_tech_request_context = io_tech_request_context
IMPORTING er_entityset = er_entityset
es_response_context = es_response_context ).
ENDMETHOD.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_entity.
DATA(ls_data_provider) = me->mt_data_providers->get( iv_entity_name ).
ls_data_provider-instance->before_processing( ).
ls_data_provider-instance->set_context( mo_context ). " for SADL features
ls_data_provider-instance->/iwbep/if_mgw_appl_srv_runtime~get_entity(
EXPORTING iv_entity_name = iv_entity_name
iv_entity_set_name = iv_entity_set_name
iv_source_name = iv_source_name
it_key_tab = it_key_tab
it_navigation_path = it_navigation_path
io_tech_request_context = io_tech_request_context
IMPORTING er_entity = er_entity
es_response_context = es_response_context ).
ENDMETHOD.
ENDCLASS.
Customize Entity
Now the Class name and the structure need to be added to the entity customizing.
Structure = MARA and Class = ZCL_ODATA_MATERIAL.

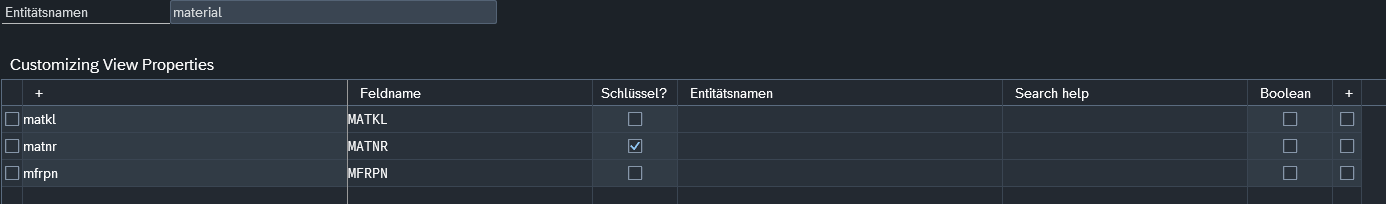

Customize the Properties
After you declared the entity you need to add the properties to the entity. This can be archived in the customizing. Just click on the next folder in the customizing view. At least one property should be added to the entity and the key should be defined.
In this example the matnr is the key property. The fieldname should be the same as the fieldname in the structure.
Test the service
Now everything is set up and you can test the service in the Gateway Client.
